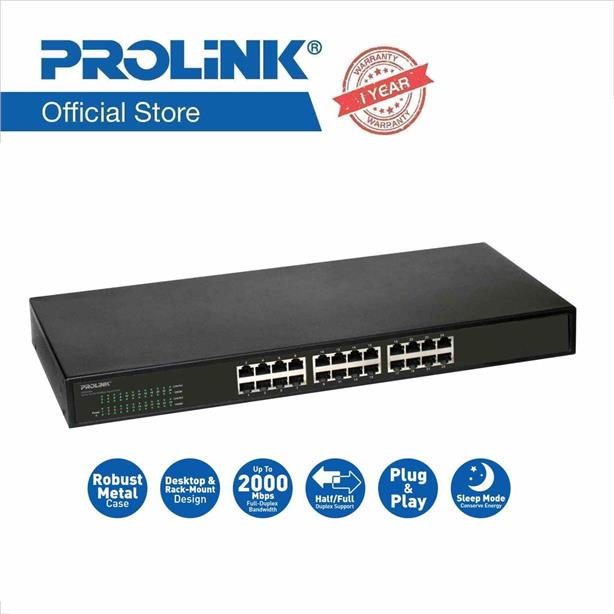

PROLiNK PSG2420M 24-Port 1000Mbps Gigabit Ethernet Switch (Rack-Mount)ItemID : 183155720

Our Price
RM 369.00
Price includes GST (6%)
Normal Price
RM 399.00    You save RM 30.00
*Incl GST (6%)
RM 8 by courier to Peninsular Malaysia
RM 25 by courier to Sabah, Labuan
RM 25 by courier to Sarawak
Combine Shipping AllowedCombine Shipping Allowed , Ships 3-5 working days after payment.
Please select option below


- +
Ship From
Ship To
Within Malaysia ,Ship By: Courier Services,Self Collect
GST ID: 001442172928
Feedback Score    :  115+
Positive Feedback :  100.00%

Member Since    :     12 Jan 2004
Payment Methods : NetPay

Buyer Protection Program
Payments are covered by BPP (Learn More)
Popular Products

Item Specification

Brand : PROLiNK
Model / SKU : PSG2420M
Conditions : New

Product Description

PROLiNK PSG2420M 24-Port 1000Mbps Gigabit Ethernet Switch (Rack-Mount)


24-Port 10/100/1000Mbps Gigabit Ethernet Switch

  • Supports auto-negotiation RJ45 ports (Auto MDI/ MDIX)
  • Store-and-Forward switching method
  • Supports 1000Mbps in Full-Duplex mode
  • Robust metal frame, can be placed on a desktop and or mounted on a 19” rack mount
  • Jumbo Frame Support

The PROLiNK® PSG2420M 24-Port 10/100/1000Mbps Gigabit Ethernet Switch is a rack-mountable switching hub that allows you to connect up to 24 devices at a time. The sturdily built device comes with a robust metal housing that provides optimised workspace efficiency.

Each individual port is able to receive and transmit traffic at the full dedicated wire speed. Operating on a Store-and-Forward switching method, the PSG2420M seeks to eliminate bad data frames from the network; ensuring a high level of error-free network traffic. The PROLiNK PSG2420 offers a cost-effective solution for SOHO users, internet cafes, campus LAN environments and small/medium businesses.



Key Features



- Supports Auto-Negotiation RJ45 ports (Auto MDI/ MDIX)




 Store-and-Forward switching method

- Eliminates bad data packets from the network

Excellent Performance

- Supports 1000Mbps in Full-Duplex mode



 Rack Mountable Design

- Robust metal frame, can be placed on a desktop and or mounted on a 19” rack mount

Jumbo Frame Support

- Allows a much larger frame size of up to 9261 Bytes to be sent over a network




Product Thumbnail

  • IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az
Number of Ports
  • 24 x 10/100/1000Mbps Auto Negotiation ports
Cable Type
  • 10Base-T:
    UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 100Base-T:
    UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000Base-T:
    UTP category 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicator
  • Link/Act: Green, 1000M: Green
  • Other: Power (Green)
Switching Capacity
  • 52G
MAC Address List
  • Automatically learning, automatically Update 16K Table
Frame Filtering & Forward Rate
  • 10Mbps: 14880pps; 100Mbps:148800pps; 1000Mbps: 1488000pps;
Power Supply
  • Input: 100-240VAC 50-60Hz
Power Consumption
  • 20W (MAX)
  • Operating Temperature: 0 °C ~ 40°C
  • Storage Temperature: -10°C ~ 70°C
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5% ~ 90% RH, non-condensing
  • 440x 205 x 44mm (19” metal case) (L x W x H)
  • 2.44KG
Package Content
  • 1 x 24-Port 10/100/1000Mbps Gigabit Ethernet Switch
  • 1 x Power Cord
  • 2 x Rack-mount Bracket
  • 8 x Screw
  • 4 x Rubber Feet
  • 1 x User Manual
  • 1 Year


 Compatible with:

Windows 7™ Windows Vista™ Windows 2000 / XP™   Mac OSLinux
* Windows XP/Vista/7/8/10, Mac*, Linux

 ** Specifications in this datasheet are subject to change without prior notice.

Questions & AnswersDo you have any questions to ask merchant about this product   Ask Seller

 Buy With Confidence we have 157 Good Ratings from buyers !

BuyerItem IDDateRatings
po**** 169118995 10/17/2016 12:45:00 PM -
sh**** 183132263 10/16/2016 11:22:00 PM Quick respond and delivery a++
us**** 167920376 8/14/2016 9:14:00 PM nice easy friendly and fast. Senang berurusan sebegini. Nak ke prolink store sendiri pun jauh.
lo**** 178997168 7/29/2016 6:49:00 AM Item received safely and as advertised
wi**** 167920415 7/25/2016 10:53:00 PM Terbaik & boleh dipercayai !!!
si**** 178997168 7/19/2016 3:12:00 PM -
ch**** 169119190 7/15/2016 2:27:00 PM -
be**** 167920415 6/21/2016 11:04:00 AM Recommended. Nice service.

View More Rating

PROLiNK Official Store only accepts NetPay because of the protection and security of customer. By using NetPay, we can confidently provide customers with a reliable and secure online checkout experience which is just few simple clicks and steps.

We will be informed by system automatically about your payment once you have paid by Netpay (either by Internet banking or Credit Card).

There will be shipping fee incur on any purchase within PROLiNK Official Store. Below are the charges rate:

Peninsular Malaysia:

First 5KG = RM8.00
Subsequent on every 1KG = RM1.00

Sabah, Labuan and Sarawak:

First 1KG = RM15.00
Subsequent on every 1KG = RM12.00

Terms and Conditions

This an PROLiNK Official Store so that Original product packaging is intact, the commodity and its standard accessories, gifts (if any), manual (if any), packing list, warranty certificate (if any), receipt and invoice (if any) are all complete.

Please read and understand our Terms and Conditions prior purchase:

1. All official items are quoted in Malaysia Ringgit (RM), postage fee is excluded.

2. All official items sold are not exchangeable or refundable.

3. All items price are non-negotiable.

4. Full refunds guarantee in case out of stock.

5. We only accept NetPay.

6. All items are thoroughly inspected before delivery. We will fully responsible if the product(s) damaged on arrival due to delivery mishandling. Please report to us via email within 48 hours from the time of package arriving. Any report after 48 hours shall not be entertained.

7. We will ship out your item within 3-5 working days. Whole process will take 5-10 days.

8. We reserve the right to amend our terms and conditions without prior notice when it deemed necessary.

9. By placing an order with us, you agree to be bound by the Terms and Conditions.

Warranty Policy

The following terms and conditions apply to PROLiNK brand of products marketed and distributed by Fida Systems (M) Sdn Bhd, which are purchased and used in Malaysia by the original purchaser.

Warranty periods quoted are intended as a guide only and variations may occur within these product groups. Should you have problems with any of the above, you can contact our Customer Service and Technical Support at (603) 8023 9151 who will be happy to help.

Please have your full PROLiNK model number and serial number, date of purchase and a brief description of the fault/query when contacting our service team.

Warranty Periods




Other Terms


1 Year

1 Year


Power Backup

1 Year

1 Year


Gadgets and Accessories / Gaming Series / Keyboard and Mouse

1 Year

1 Year


Important Notes

  • The oriiginal dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the service center.
  • Warranty begins on the original date of purchase, and is valid on products purchased and used in Malaysia only.
  • For more information, please contact our Customer Service and Technical Support at (603)8023 9151 or email us at

What Our Warranty Covers

  • Fida Systems (M) Sdn Bhd (hereon known as the Company) warrants PROLiNK's products to be free from defects in material and workmanship for the period specified. Warranty applies from the date of purchase by the first customer and is transferable only between end-users.
  • Fida Systems (M) Sdn Bhd will, at its sole discretion, repair or replace the product with a similar product. The replacement unit will be covered by the balance of the time remaining on the customer's original limited warranty.
  • Fida Systems (M) Sdn Bhd provides no warranty for any third-party software or accessories included or bundled with the product or installed by the customer.
  • Product item which is "Dead On Arrival" (DOA) and missing or short of any parts or components MUST be exchanged with the service centre COMPLETE with the full packaging and original dated sales receipt WITHIN 7 DAYS from the date of purchase. Any other requests after 7 days will not be entertained.

What Our Warranty Does Not Covers

  • Any product on which the Serial Number has been defaced, modified or removed.
  • Accident in transit, misuse or improper application, wrong or inadequate electrical current or connection, negligence, fire, water, lightning, or other acts of nature.
  • Unauthorized product modification, or failure to follow instructions supplied with the product.
  • Using under inappropriate on site condition (operating condition may refer to User Manual).
  • Loss of data, profits or goodwill, damage and destruction of any data, programmes, equipment or other properties, cost of recovering, reprogramming or reproducing any data, programmes or equipment.
  • Repair or attempted repair by anyone not authorized by Fida Systems (M) Sdn Bhd.
  • Removal or installation of the product.
  • Causes external to the product, such as electric power fluctuations or failure.
  • Use of supplies or parts not meeting Fida Systems (M) Sdn Bhd specifications.
  • Normal wear and tear.
  • Damage to, or abuse of the coating on the surface of the display.
  • Any other cause which does not relate to a product defect.
  • Personal loss, injury or any other damages.
  • Removal, installation and set-up service charges.
  • On-site warranty unless otherwise stated.
  • If there is no original dated sales receipt accompanied with the product which is sent into the Service Centre for any repair. Charges will be incurred accordingly to the customer for parts replacement and servicing.


Fida Systems (M) Sdn Bhd shall not be liable for any damages of any kind resulting from the purchase, use, or misuse of, or inability to use the product or arising directly or indirectly from the use or loss of use of the product or from the breach of the express warranty, including incidental, special, consequential or similar damages, or loss of anticipated profits or benefits, or for damages arising from any tort (including negligence or gross negligence) or fault committed by Fida Systems (M) Sdn Bhd, its agents or employees, or for any breach of contract or for any claim brought against purchaser by any other party. Warranty terms and conditions may vary from country to country, so the above limitations or exclusions may not apply to you.

This agreement is the whole and entire agreement between the purchaser and Fida Systems (M) Sdn Bhd and supersedes any prior or different agreements and shall be governed by the Malaysia laws.
